INTRODUCTION
Sunflex Metal Industries is known for its best quality manufacturing and exporting of Elbow 90° Short Radius. With Holding years of experience in manufacturing, we continue to offer robust quality of Elbow 90° Short Radius with very reasonable prices across all over the world. We are confident enough to guarantee on the products and services provided by us to our clients. Our Products have found various applications in different industrial requirements, including - Oil & Gas, Chemical, Petrochemical, Plant, Pulp & Paper, Environment & Water Projects, Engineering Projects and more.
Elbow 90° Short Radius Specification
Size : 1/2"NB TO 48"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Material Type:
Carbon Steel,
Stainless Steel
Grades:
Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.

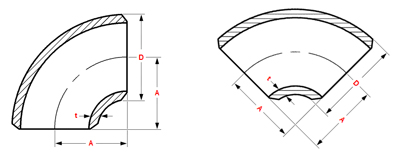

Elbow 90° Short Radius Dimension
NPS | O.D. D | Center-to-End A | NPS | O.D. D | Center-to-End A | |
NPS | O.D. D | Center-to-End A | NPS | O.D. D | Center-to-End A | |
1 | 33.4 | 25 | 8 | 219.1 | 203 | |
1¼ | 42.2 | 32 | 10 | 273 | 254 | |
1½ | 48.3 | 38 | 12 | 323.8 | 305 | |
2 | 60.3 | 51 | 14 | 355.6 | 356 | |
2½ | 73 | 64 | 16 | 406.4 | 406 | |
3 | 88.9 | 76 | 18 | 457 | 457 | |
3½ | 101.6 | 89 | 20 | 508 | 508 | |
4 | 114.3 | 102 | 22 | 559 | 559 | |
5 | 141.3 | 127 | 24 | 610 | 610 | |
6 | 168.3 | 152 | - | ... | ... | |
NPS | O.D. D | Center-to-End A | NPS | O.D. D | Center-to-End A |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Dimensional Tolerances of Butt Weld Elbows Short Radius 90° ASME B16.9
Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
Outside Diameter at Bevel (D) | + 1.6 - 0.8 | 1.6 | 1.6 | + 2.4 - 1.6 | + 4 - 3.2 | + 6.4 - 4.8 | + 6.4 - 4.8 | + 6.4 - 4.8 |
Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | + 6.4 - 4.8 | + 6.4 - 4.8 |
Center-to-End (A) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness |
